Wintop’s industrial switches and optical transceiver product lines cover every stage from substations to distribution networks. Designed for wide-temperature operation, they deliver high reliability and stable performance. We tailor solutions to your needs to help you meet the toughest environmental challenges.

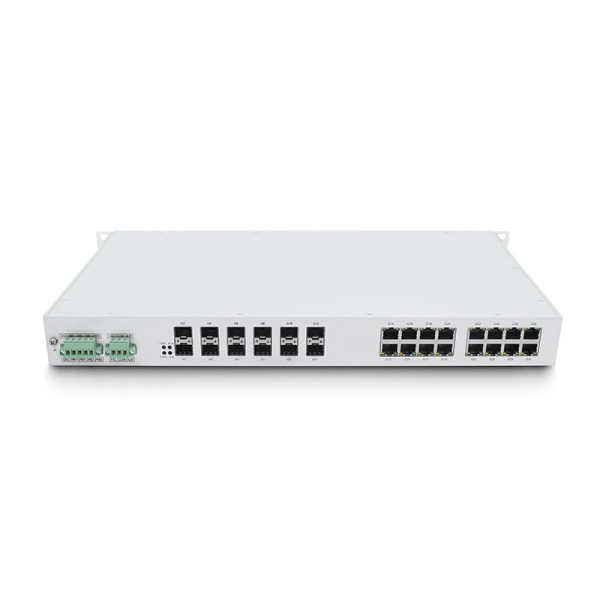

CM6000-4GF8GF16GT is a managed industrial-grade Ethernet switch that provides 4 Gigabit fiber ports, 8 Gigabit fiber ports, and 16 Gigabit copper ports. It features a fanless, low-power design with industrial grade 4 standards and an IP40 protection rating. With an operating temperature range of -40 to 75°C, it offers exceptional durability and is specially designed for reliable network communication in harsh environments, with high EMI/EMS protection capabilities. Each product undergoes 100% aging tests to ensure quality. It supports advanced management and security features such as IGMP snooping, IEEE 802.1Q VLAN, QoS, port mirroring, SNMP, RMON, and more. Redundancy and backup features like Link Aggregation, WT-Ring, RSTP/STP, and ERPS further enhance network reliability and availability.
Product Technical Specifications
| Supported Standards | |||
| IEEE 802.3 10BaseT, IEEE 802.3u 100BaseT, IEEE 802.3z 1000BaseFX, IEEE 802.3ab 1000BaseT, IEEE 802.3x Flow Control, IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1p CoS, IEEE 802.1Q VLAN | |||
| Protocols | |||
| IGMP Snooping, SNMPv1/v2c/v3, TFTP, NTP, SNTP, RMON, HTTP, HTTPS, SSH, Telnet, Syslog, LLDP, LACP, WT-Ring, STP, RSTP, ERPS, EEE, MIB | MIB-II, BRIDGE MIB, Ethernet MIB, IF MIB | QoS Queues | 8 |
| VLAN ID | 1-4094 | Backplane Bandwidth | 56Gbps |
| MAC Address Table | 8K | Buffer Size | 4.1Mbit |
| Console Port | RS-232 (Connector type: RJ45 slot) | Gigabit Fiber Port | 1000Mbps (Connector type: SFP slot) |
| Gigabit Copper Port | 10/100/1000Mbps adaptive, Full/Half duplex mode, supports MDI/MDI-X | LED Indicators | PWR1, PWR2, ALM, Link/ACT, SPD, RUN |
| Relay | 2 channels, 1 device alarm channel, 1 device fault channel | Input Voltage | Supports dual redundant backup, selectable AC/DC 85–265V or DC 18–60V |
| Enclosure | Aluminum, IP40 protection | Dimensions | 440mm280mm44mm |
| Weight | 3800g | Installation Method | Rack-mounted |
| Operating Temperature | -40 ~ 75°C (-40 ~ 167°F) | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Ambient Relative Humidity | 5 ~ 95% (non-condensing) | Electromagnetic Interference (EMI) | FCC Part 15/CISPR22 (EN55022) Class A |
| Electromagnetic Susceptibility (EMS) | |||
| IEC61000-4-2 (ESD) Level 4, IEC 61000-4-3 (RS) Level 3, IEC 61000-4-4 (EFT) Level 4, IEC 61000-4-5 (Surge) Level 4, IEC 61000-4-6 (CS) Level 3 | |||
| Vibration Resistance | IEC 60068-2-6 | Shock Resistance | IEC 60068-2-27 |
| Free Fall | IEC 60068-2-32 | MTBF (Mean Time Between Failures) | 500,000 h |
| Quality Assurance | 5 years | ||
About the manufacturer, Wintop
R&D Capabilities
Wintop operates a 10,000-square-foot R&D center and has accumulated over 60 technology and invention patents, establishing a comprehensive intellectual property system.
Performance Testing
Every product from Wintop Photoelectric undergoes comprehensive testing on professional communication equipment testing platforms to ensure the solutions operate efficiently and stably in real-world application environments.
Quality Management
Stringent quality management and high-standard material control systems ensure high-quality, highly stable products.
Wintop products are manufactured in compliance with stringent quality standards.
If you cannot find a relevant solution, please contact us
Please ensure the device is securely placed to prevent falling or strong vibrations. Use a power supply that meets the required specifications. Avoid operating the device in damp, dusty, or environments with strong electromagnetic interference. Do not open the device casing during operation. When cleaning, disconnect the power first and use a dry, soft cloth. The interfaces support hot-plugging, but please ensure standard cables and modules are used.
If you discover potential or actual security vulnerabilities related to Wintop Photoelectric products or identify security issues on Wintop Photoelectric external websites, please send the relevant information to our dedicated security incident response team email. Our professional security experts will promptly investigate and address the matter, while strictly maintaining the confidentiality of your identity and information.
Choosing Wintop maintenance services means choosing peace of mind. We remain committed to our service philosophy of efficiency, speed, professionalism, and comprehensiveness, providing comprehensive repair and maintenance services for your equipment to support your business growth. No matter what type of repair or maintenance service you require, Wintop Photoelectric is dedicated to delivering high-quality, convenient, and worry-free solutions, ensuring your complete satisfaction and peace of mind.
CM6000-4GF8GF16GT Layer 2 Rack-Mounted Managed Switch
28-port managed industrial Ethernet switch with 4 Gigabit fiber ports, 8 Gigabit fiber ports, and 16 Gigabit copper ports
