Wintop’s industrial switches and optical transceiver product lines cover every stage from substations to distribution networks. Designed for wide-temperature operation, they deliver high reliability and stable performance. We tailor solutions to your needs to help you meet the toughest environmental challenges.
YT-CM6020-G-F16G4 is a managed power industrial-grade Ethernet switch, providing 4 Gigabit SFP ports, 16 Fast Ethernet SFP ports, and 2 Fast Ethernet maintenance RJ45 ports. It features a standard 19-inch chassis with 1U height and IP40 protection rating. With a wide operating temperature range of -40 to 75°C, its aluminum enclosure offers exceptional durability and excellent heat dissipation, making it specially designed for network communication in harsh environments with high EMI/EMS protection level. The switch supports over 2000 log entries with automatic cyclic overwriting. It supports the SNTP protocol and server mode based on the NTP protocol for time synchronization management. Real-time monitoring features include internal device temperature, communication port optical power, motherboard operating voltage, CPU load, and more. The switch provides various functions and security features such as IEEE 802.1Q VLAN, GMRP, IGMP snooping, QoS, LLDP, port mirroring, SV&GOOSE message rate limiting, MAC address-based data frame filtering, CRC error detection, and MAC source address error filtering. For increased network reliability and availability, it supports Link Aggregation and STP/RSTP functions. Additionally, the device supports detailed, clearly tiered log records with log import and export functionality.
Product Technical Specifications
| Supported Standards | |||
| IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3z 1000BaseLX and 1000BaseSX, IEEE 802.3x Flow Control, IEEE 802.1d STP, IEEE 802.1w RSTP, IEEE 802.1p Class of Service, IEEE 802.1Q VLAN Tagging | |||
| Protocols | |||
| IGMP Snooping, GMRP, SNMPv1/v2c/v3, TFTP, SNTP, HTTP, Telnet, Syslog, LLDP, NTP Server/Client, EtherNet/IP | |||
| MIB includes MIB-II, BRIDGE MIB, Ethernet MIB, IF MIB | |||
| QoS Queues | 8 | VLAN ID Range | 1-4094 |
| Backplane Bandwidth | 128Gbps | MAC Address Table | 16K |
| Buffer Size | 12Mbit | Console Port | RS-232 (RJ45 interface) |
| Maintenance Port | 100Mbps (MMS-A/MMS-B, RJ45 interface) | Fast Ethernet SFP Port | 100Mbps (SFP slot) |
| Gigabit SFP Port | 1000Mbps (SFP slot) | LED Indicators | Power 1, Power 2, Alarm, Run, Status, Speed, Abnormal Interruption |
| Relay | 2 channels, 1 device alarm, 1 device fault | Input Voltage | AC/DC 85265V |

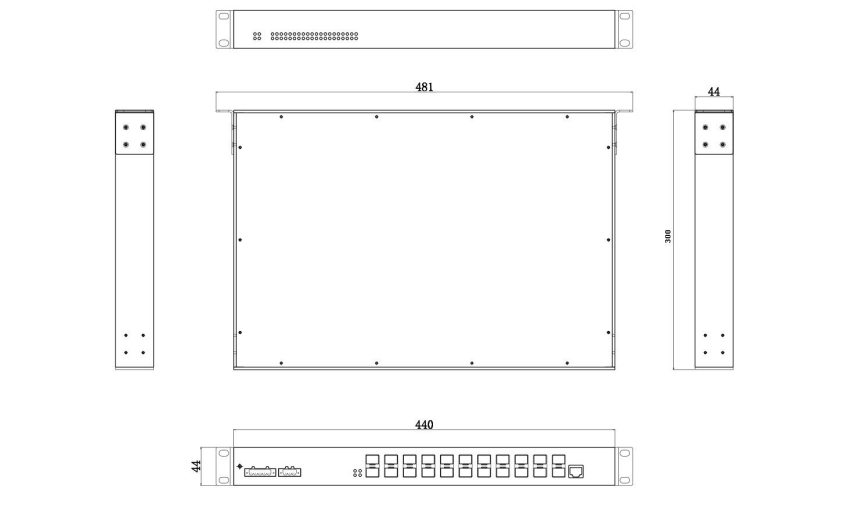

| Enclosure | Aluminum, IP40 protection | Dimensions | 440mm300mm44mm |
| Weight | 4.75Kg | Installation | Rack-mounted |
| Operating Temperature | -40 ~ 75°C (-40 167°F) | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Relative Humidity | 5 ~ 95% (non-condensing) | ||
| Standards and Certifications | |||
| GB/T 17626.2 (ESD) Level 4, GB/T 17626.3 (RS) Level 3, GB/T 17626.4 (EFT) Level 4, GB/T 17626.5 (Surge) Level 4, GB/T 17626.6 (CS) Level 3, GB/T 17626.8 Level 3, GB/T 17626.9 Level 5, GB/T 17626.10 Level 3, GB/T 17626.18 Level 3, GB/T 17626.16 Level 3, GB/T 17626.29 100ms%0 | |||
| Vibration Resistance | GB/T 15153.2-2000 displacement amplitude 7mm@29Hz, acceleration amplitude 20mm@9200Hz, 15mm@200~500Hz | Shock Resistance | GB/T 15153.2-2000 duration 11ms, acceleration 300m/s2 |
| Free Fall | GB/T 15153.2-2000 0.25m | MTBF (Mean Time Between Failures) | 500,000 h |
| Warranty | 5 years | ||
About the manufacturer, Wintop
R&D Capabilities
Wintop operates a 10,000-square-foot R&D center and has accumulated over 60 technology and invention patents, establishing a comprehensive intellectual property system.
Performance Testing
Every product from Wintop Photoelectric undergoes comprehensive testing on professional communication equipment testing platforms to ensure the solutions operate efficiently and stably in real-world application environments.
Quality Management
Stringent quality management and high-standard material control systems ensure high-quality, highly stable products.
Wintop products are manufactured in compliance with stringent quality standards.
If you cannot find a relevant solution, please contact us
Please ensure the device is securely placed to prevent falling or strong vibrations. Use a power supply that meets the required specifications. Avoid operating the device in damp, dusty, or environments with strong electromagnetic interference. Do not open the device casing during operation. When cleaning, disconnect the power first and use a dry, soft cloth. The interfaces support hot-plugging, but please ensure standard cables and modules are used.
If you discover potential or actual security vulnerabilities related to Wintop Photoelectric products or identify security issues on Wintop Photoelectric external websites, please send the relevant information to our dedicated security incident response team email. Our professional security experts will promptly investigate and address the matter, while strictly maintaining the confidentiality of your identity and information.
Choosing Wintop maintenance services means choosing peace of mind. We remain committed to our service philosophy of efficiency, speed, professionalism, and comprehensiveness, providing comprehensive repair and maintenance services for your equipment to support your business growth. No matter what type of repair or maintenance service you require, Wintop Photoelectric is dedicated to delivering high-quality, convenient, and worry-free solutions, ensuring your complete satisfaction and peace of mind.
YT-CM6020-G-F16G4 Substation Industrial Ethernet Switch
20-port substation process layer managed Ethernet switch with 4 Gigabit SFP ports and 16 Fast Ethernet SFP ports
