Wintop’s industrial switches and optical transceiver product lines cover every stage from substations to distribution networks. Designed for wide-temperature operation, they deliver high reliability and stable performance. We tailor solutions to your needs to help you meet the toughest environmental challenges.
8112 Series Fiber Optic Transceivers, Media Conversion between 10/100Base-TX and 100Base-FX Networks, Two 10/100M Electrical Ports and One 100M Optical Port, Transmission Distances up to 80km, Stable and Reliable Performance, Compliant with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX/100Base-FX Standards, Ideal for Telecommunications, Cable Television, Railways, Military, Financial Securities, Customs, Civil Aviation, Shipping, Power, Water Conservancy, Oil Fields and Other Broadband Data Networks Requiring High Reliability or Dedicated IP Data Transmission, Perfect Solution for Building Broadband Campus Networks, Cable TV Systems, Intelligent Broadband Communities, Fiber-to-the-Building (FTTB) and Fiber-to-the-Home (FTTH) Applications
Product Technical Specifications
| Supported Standards | |||
| IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX and 100Base-FX | |||
| Electrical Ports | 2 (RJ45) 10/100Base-T | Optical Port | 1 (1x9) 100Base-FX |
| Rate | 100Mbps | Single-Mode Fiber | 9/125, 10/125μm |
| Multi-Mode Fiber | 50/125, 62.5/125μm | Single-Mode | 20/40/60/80Km |
| Multi-Mode | 2Km | Interface Type | SC, ST, FC (Optional) |
| Rate | 10/100Mbps Auto-Adaptive | Operating Mode | Full-Duplex/Half-Duplex |
| Transmission Distance | 0-100m | Interface Type | RJ45 |
| LED Indicators | PWR, L/A(FX), SD | Input Voltage | DC5V |

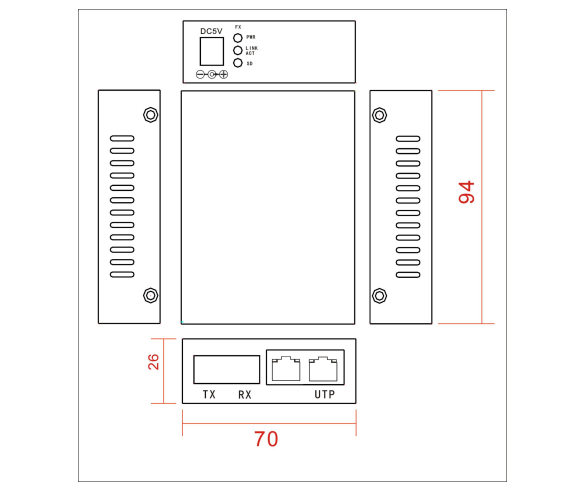

| Product Dimensions | 94mm x 70mm x 26mm | Operating Temperature | -20~60°C (-4~140°F) |
| Storage Temperature | -20~70°C (-4~158°F) | Relative Humidity | 5~90% (Non-Condensing) |
| MTBF (Mean Time Between Failures) | 500,000 h | Warranty | 3 Years |
About the manufacturer, Wintop
R&D Capabilities
Wintop operates a 10,000-square-foot R&D center and has accumulated over 60 technology and invention patents, establishing a comprehensive intellectual property system.
Performance Testing
Every product from Wintop Photoelectric undergoes comprehensive testing on professional communication equipment testing platforms to ensure the solutions operate efficiently and stably in real-world application environments.
Quality Management
Stringent quality management and high-standard material control systems ensure high-quality, highly stable products.
Wintop products are manufactured in compliance with stringent quality standards.
If you cannot find a relevant solution, please contact us
Please ensure the device is securely placed to prevent falling or strong vibrations. Use a power supply that meets the required specifications. Avoid operating the device in damp, dusty, or environments with strong electromagnetic interference. Do not open the device casing during operation. When cleaning, disconnect the power first and use a dry, soft cloth. The interfaces support hot-plugging, but please ensure standard cables and modules are used.
If you discover potential or actual security vulnerabilities related to Wintop Photoelectric products or identify security issues on Wintop Photoelectric external websites, please send the relevant information to our dedicated security incident response team email. Our professional security experts will promptly investigate and address the matter, while strictly maintaining the confidentiality of your identity and information.
Choosing Wintop maintenance services means choosing peace of mind. We remain committed to our service philosophy of efficiency, speed, professionalism, and comprehensiveness, providing comprehensive repair and maintenance services for your equipment to support your business growth. No matter what type of repair or maintenance service you require, Wintop Photoelectric is dedicated to delivering high-quality, convenient, and worry-free solutions, ensuring your complete satisfaction and peace of mind.
YT-8112SB-20B 100M Fiber Media Converter
1 Optical 2 Electrical Ports 10/100M 100Mbps Fiber Optic Transceiver
