Wintop’s industrial switches and optical transceiver product lines cover every stage from substations to distribution networks. Designed for wide-temperature operation, they deliver high reliability and stable performance. We tailor solutions to your needs to help you meet the toughest environmental challenges.

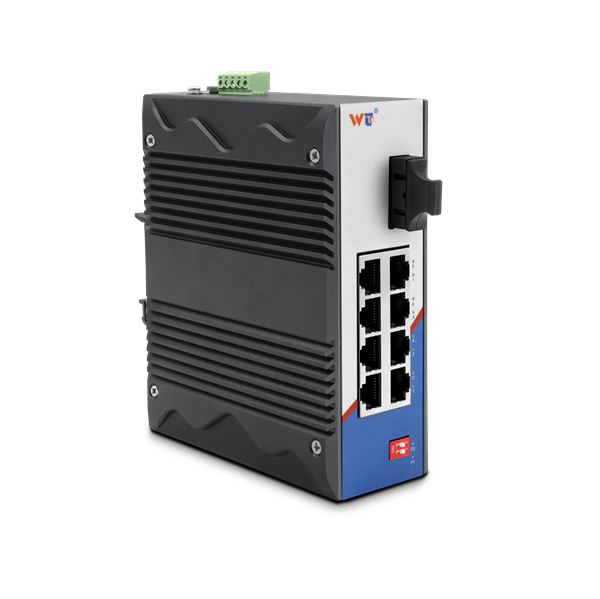

The RS239-1F8T is an extended temperature industrial-grade switch developed by Wintop Photoelectric to meet the needs of industries such as intelligent transportation, expressways, smart cities, safe cities, new energy, and smart manufacturing. The product features 1 Fast Ethernet uplink fiber optic port and 8 Fast Ethernet downlink electrical ports, delivering high-speed packet forwarding capability and ample backplane bandwidth to ensure clear and smooth image transmission. With an IP40-rated aluminum housing, vibration-resistant DIN-rail mount, operating temperature range of -40°C to 85°C, and excellent EMC electromagnetic compatibility, this series is built to deliver stable and reliable performance in harsh industrial environments.
Product Technical Specifications
| Standards Supported | |||
| IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX and 100Base-FX | |||
| Backplane Bandwidth | 1.8 Gbps | Packet Forwarding Rate | 1.33 Mpps |
| MAC Address Table | 2K | Fast Ethernet Optical Port | 100 Mbps (Interface options: SC/ST/FC) |
| Fast Ethernet Electrical Ports | 10/100 Mbps auto-negotiation, Full/Half duplex modes, MDI/MDI-X support | LED Indicators | P1, P2, L/A |
| Input Voltage | DC 9~48V (Redundant) | Maximum Power Consumption | 2W |

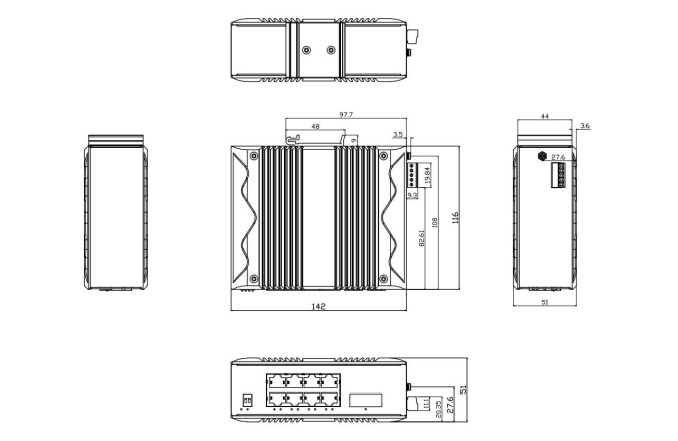

| Housing | Aluminum, IP40 protection | Dimensions | 142 x 116 x 51 mm |
| Weight | 700g | Mounting Method | DIN-rail mounting |
| Operating Temperature | -40 ~ 85°C (-40 ~ 185°F) | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Relative Humidity | 5 ~ 95% (non-condensing) | ||
| Electromagnetic Susceptibility (EMS) | |||
| IEC 61000-4-2 (ESD) Level 4, IEC 61000-4-4 (EFT) Level 4, IEC 61000-4-5 (Surge) Level 4 (6kV port surge protection, 4kV power surge protection) | |||
| Vibration Resistance | IEC 60068-2-6 | Shock Resistance | IEC 60068-2-27 |
| Free Fall | IEC 60068-2-32 | Certifications | CE, FCC, RoHS, MIIT Network Access License, Public Security Inspection Report |
| MTBF (Mean Time Between Failures) | 500,000 hours | Warranty | 5 years |
About the manufacturer, Wintop
R&D Capabilities
Wintop operates a 10,000-square-foot R&D center and has accumulated over 60 technology and invention patents, establishing a comprehensive intellectual property system.
Performance Testing
Every product from Wintop Photoelectric undergoes comprehensive testing on professional communication equipment testing platforms to ensure the solutions operate efficiently and stably in real-world application environments.
Quality Management
Stringent quality management and high-standard material control systems ensure high-quality, highly stable products.
Wintop products are manufactured in compliance with stringent quality standards.
If you cannot find a relevant solution, please contact us
Please ensure the device is securely placed to prevent falling or strong vibrations. Use a power supply that meets the required specifications. Avoid operating the device in damp, dusty, or environments with strong electromagnetic interference. Do not open the device casing during operation. When cleaning, disconnect the power first and use a dry, soft cloth. The interfaces support hot-plugging, but please ensure standard cables and modules are used.
