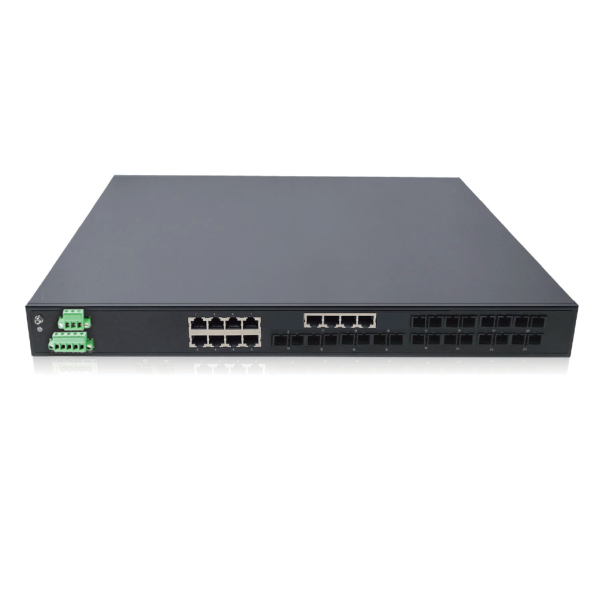

The CM2024-12F12T is a rackmount industrial Ethernet switch developed by wintop to meet the demands of industrial sectors such as wind power, distribution networks, transportation, and petrochemicals. The product features 12 100Mbps uplink fiber ports and 12 100Mbps downlink Ethernet ports, providing high-speed packet forwarding capability and ample backplane bandwidth to ensure clear and smooth image transmission. This product has an IP40-rated iron enclosure, a fanless design, and can operate reliably in extreme environments ranging from -40°C to 75°C. It also offers excellent EMC electromagnetic compatibility performance, enabling this series of products to work stably and reliably in harsh industrial environments.
Product Technical Specifications
| Supported Standards | |||
| IEEE 802.3 10BaseT, IEEE 802.3u 100BaseT, IEEE 802.3u 100BaseFX | |||
| Backplane Bandwidth | 4.8Gbps | MAC Address Table | 8K |
| Buffer Size | 3Mbit | Fiber Ports | 100Mbps (interface types optional SC, FC, ST) |
| 100Mbps Ethernet Ports | 10/100Mbps adaptive, Full/Half duplex mode, supports MDI/MDI-X | LED Indicators | PWR1, PWR2, ALM, Link/ACT, SPD |
| Relay | 1 channel | Input Voltage | Supports dual redundant backup, AC/DC 85–265V or DC 18–60V optional |
| Physical Characteristics | |||
| Enclosure | Iron shell, IP40 protection | Dimensions | 440mm * 320mm * 44mm |
| Weight | 3100g | Installation | Rackmount |
| Environmental Limits | |||
| Operating Temperature | -40 ~ 75°C (-40 ~ 167°F) | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Relative Humidity | 5 ~ 95% (non-condensing) | Electromagnetic Interference (EMI) | FCC Part 15 / CISPR22 (EN55022) Class A |
| Electromagnetic Susceptibility (EMS) | |||
| IEC61000-4-2 (ESD) Level 4, IEC 61000-4-3 (RS) Level 3, IEC61000-4-4 (EFT) Level 4, IEC 61000-4-5 (Surge) Level 4, IEC 61000-4-6 (CS) Level 3 | |||
| Vibration Resistance | IEC 60068-2-6 | Shock Resistance | IEC 60068-2-27 |
| Free Fall | IEC 60068-2-32 | Certifications | CE, RoHS, MIIT Network Access License, Ministry of Public Security Inspection Report |
| MTBF (Mean Time Between Failures) | 500,000 h | Warranty | 5 years |
