Wintop’s industrial switches and optical transceiver product lines cover every stage from substations to distribution networks. Designed for wide-temperature operation, they deliver high reliability and stable performance. We tailor solutions to your needs to help you meet the toughest environmental challenges.
The 8100-DIN Fiber Optic Transceiver performs media conversion between 10/100Base-T and 100Base-FX networks. It features one 10/100Mbps Ethernet port and one 100Mbps fiber optic port, meeting the requirements of long-distance, high-speed, and high-bandwidth Fast Ethernet workgroup users, with a maximum transmission distance of up to 120 km. The product offers stable and reliable performance and complies with IEEE 802.3 and IEEE 802.3u standards.
It is particularly suitable for broadband data networks in telecommunications, cable television, railways, military, finance and securities, customs, civil aviation, shipping, electric power, water resources, oil fields, and other sectors requiring high-reliability data transmission or dedicated IP data networks. It serves as an ideal solution for building broadband campus networks, cable TV systems, and intelligent broadband communities with fiber-to-the-building (FTTB) and fiber-to-the-home (FTTH) deployments.
Product Technical Specifications
| Standards Supported | |||
| IEEE 802.3 10Base-T, IEEE 802.3u 100Base-T and 100Base-FX | |||
| Ethernet Port | 1 (RJ45) 10/100Base-T | Fiber Port | 1 100Base-FX |
| Data Rate | 100Mbps | Single-mode Fiber | 9/125μm, 10/125μm |
| Multi-mode Fiber | 50/125μm, 62.5/125μm | Single-mode | 20/40/60/80/100/120km |
| Multi-mode | 2km | Interface Type | SFP slot |
| Data Rate | 10/100Mbps auto-negotiation | Operating Mode | Full-duplex / Half-duplex |
| Transmission Distance | 0-100m | Interface Type | RJ45 |
| LED Indicators | PWR, Link/Act FP, Link/Act TP, SD, 100M, FDX/COL | Housing | Metal housing, IP40 protection |

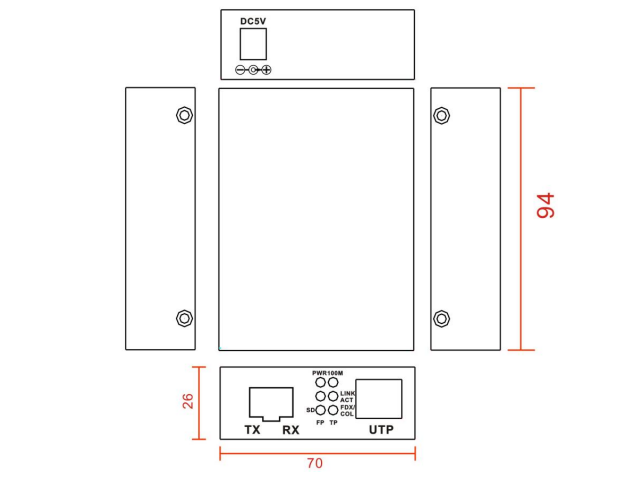

| Product Dimensions | 94 x 70 x 26mm | Mounting Method | DIN-rail / Desktop |
| Input Voltage | DC5V | Operating Temperature | -40~75°C (-40~167°F) |
| Storage Temperature | -40~85°C (-40~185°F) | Relative Humidity | 5~95% (non-condensing) |
| Electromagnetic Susceptibility (EMS) | IEC 61000-4-5 (Surge) Level 4 (4kV port lightning protection) | MTBF (Mean Time Between Failures) | 500,000 hours |
| Warranty | 3 years | ||
